Key Features

• 2 channel 10 AMP Relay board.
• Controls 2 loads of up to 10 amps each at 120V or 240V AC.
• Suitable for lighting, holiday displays etc.
• Fully assembled and electrically tested.
• LED indicator for each relay.
• Can be controlled directly by Microcontroller or NI Card.

Product Description

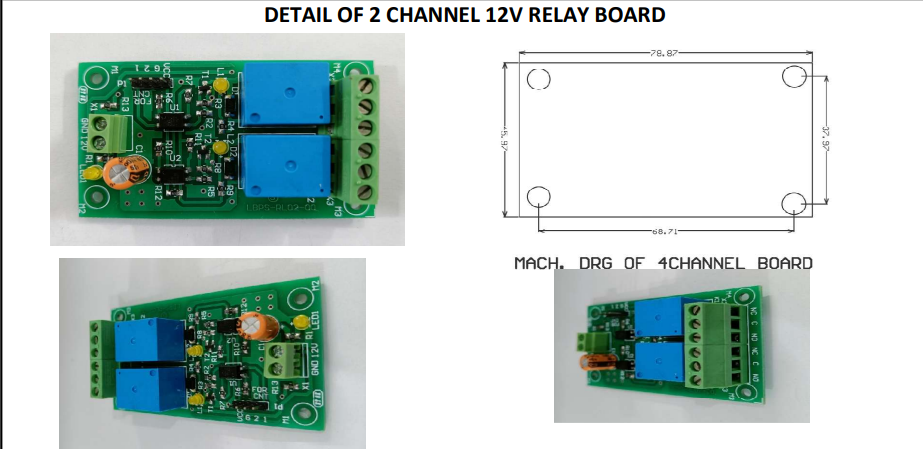

The 2 Channel 12V Relay Module (Low level Trigger) can be controlled by interface devices like Arduino and other microcontrollers. Each channel features 3 separate terminals: NO (Normal Open), COM (Common), and NC (Normal Closed). Power must be a 12DC voltage.

Interface & Power Details

• **Power Input:** 12V (Positive), GND- (Negative).
• **Interface:** CH1 (Trigger), CH2 (Trigger), GND (Isolated), VCC 5V (Optional).

Specifications

Trigger type	Low Level Trigger
Part Number	LBPS-RL02-00
Working Channel	2
Trigger Current (mA)	10mA
Trigger Voltage (VDC)	5
Isolation	Photoopto

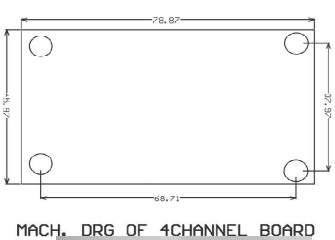

Dimensions	79mm x 46mm x 22mm
Weight (gm)	90Gram

Interface & Power Details

• **Power Input:** 12V (Positive), GND (Negative).
• **Interface:** CH1-CH4 Triggers, GND (Isolated), VCC 5V (Optional).

Product Description

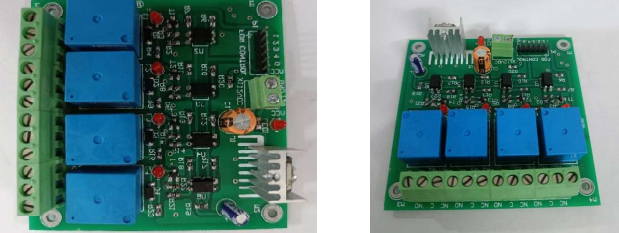

This 4 Channel 12V Relay Module is a low-level trigger module that can be controlled directly by microcontrollers like Arduino or an NI Device. It is designed to control various appliances and equipment with a large current up to 10 Amps. Power must be a 12DC voltage.

Key Features

• 4 channel 10 AMP Relay board.
• Controls 4 loads of up to 10 amps each at 120V or 240V AC.
• Good for lighting and holiday displays.
• Has been assembled, and the electrical test passed.
• LED indicator for each relay.
• Can be controlled directly by Microcontroller or NI Card.

Specifications

Trigger type	Low Level Trigger
Part Number	LBPS-RL04-00
Working Channel	4
Trigger Current (mA)	10mA
Trigger Voltage (VDC)	5
Isolation	Photoopto
Dimensions	84mm x 83mm x 22mm
Weight (gm)	100Gram

Interface & Power Details

• **Power Input:** 12V (Positive), GND- (Negative).
• **Interface:** CH1-CH8 Triggers, GND (Isolated), VCC 5V.

Product Description

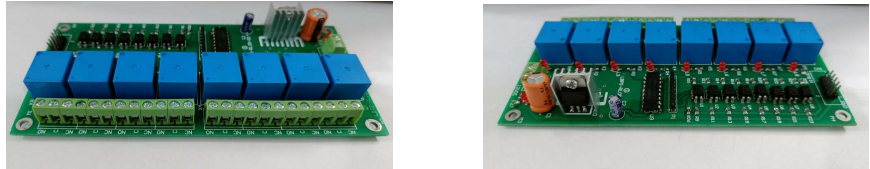

This 8 Channel 12V relay module can be controlled by an interface device like Arduino or other microcontrollers. It is a low-level trigger module and requires a 12DC power supply. Each relay channel has NO, COM, and NC terminals.

Key Features

• 8 channel 10 AMP Relay board.
• Control 8 loads of up to 10 amps each at 120V or 240V AC.
• Good for lighting, holiday displays etc.
• Has been assembled, and the electrical test passed.
• Led indicator for each relay.
• Can be controlled directly by Microcontroller or NI Card.

Specifications

Trigger type	Low Level Trigger
Part Number	LBPS-RL08-00
Working Channel	8
Trigger Current (mA)	10mA
Trigger Voltage (VDC)	5
Isolation	Photoopto

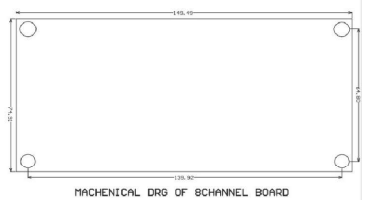

Dimensions	150mm x 75mm x 25mm
Weight (gm)	250Gram

Interface & Power Details

• **Power Input:** 12V (Positive), GND- (Negative).
• **Interface:** CH1-CH16 Triggers, GND (x2, Isolated), VCC 5V (x2).

Product Description

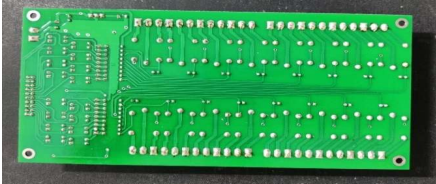

This 16 Channel 12V relay module can be directly controlled by Arduino, other microcontrollers, or an interface device (NI Device). It is a low-level trigger module that requires a 12DC voltage power supply. It is able to control various appliances and equipment with large current.

Key Features

• 16 channel 10 AMP Relay board.
• Controls 16 loads of up to 10 amps each at 120V or 240V AC.
• Good for lighting and holiday displays.
• Has been assembled, and the electrical test passed.
• LED indicator for each relay.
• Can be controlled directly by Microcontroller or NI Card.

Specifications

Trigger type	Low Level Trigger
Part Number	LBPS-RL16-00
Working Channel	16
Trigger Current (mA)	10mA
Trigger Voltage (VDC)	5
Isolation	Photoopto
Dimensions	192mm x 95mm x 25mm
Weight (gm)	0.32
